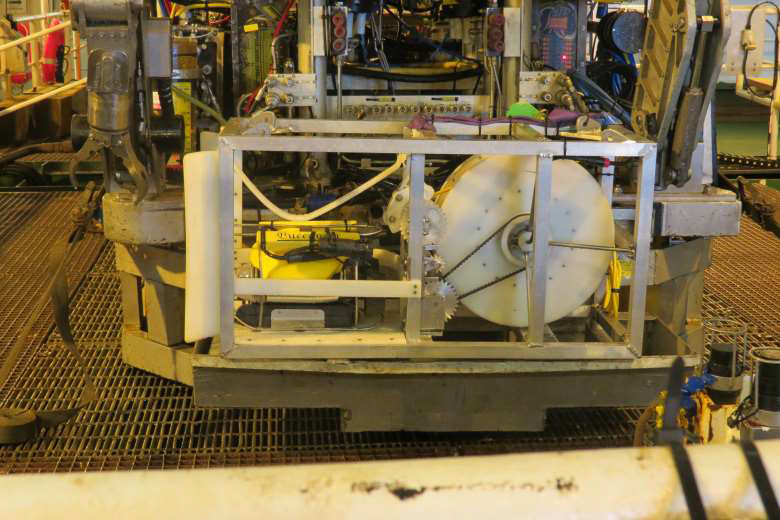

BUDDY ROV TMS

The TMS is designed to be taken to a worksite where Workclass ROV’s and divers cannot access and the conditions too difficult for a small ROV to safely reach due to distance from a platform or adverse conditions.

The TMS is designed to be attached to a Workclass unit taking hydraulic power from their valve pack. Power and telemetry is provided via an additional subsea bottle with a twisted pair to fibre mux which then connects topsides with the Micro ROV controller.

To keep costs down and minimising failure modes the TMS has no sliprings which also does away with the need for oil compensation.

The tether drum and the drive gears are plastic as are the soft lead-ins on the front and sides.

The TMS was designed around the VideoPro4 ROV system which is the market leader in its field proving both reliable, robust and easy to navigate into those tight spaces.

Recent offshore operations have proved the system where the Buddy ROV entered previously inhibited areas such as SSIV protective structures and carried out CP contact and proximity, GVI and CVI.

Download files

Buddy_TMS

BUDDY ROV TMS

BUDDY ROV TMS
